Description

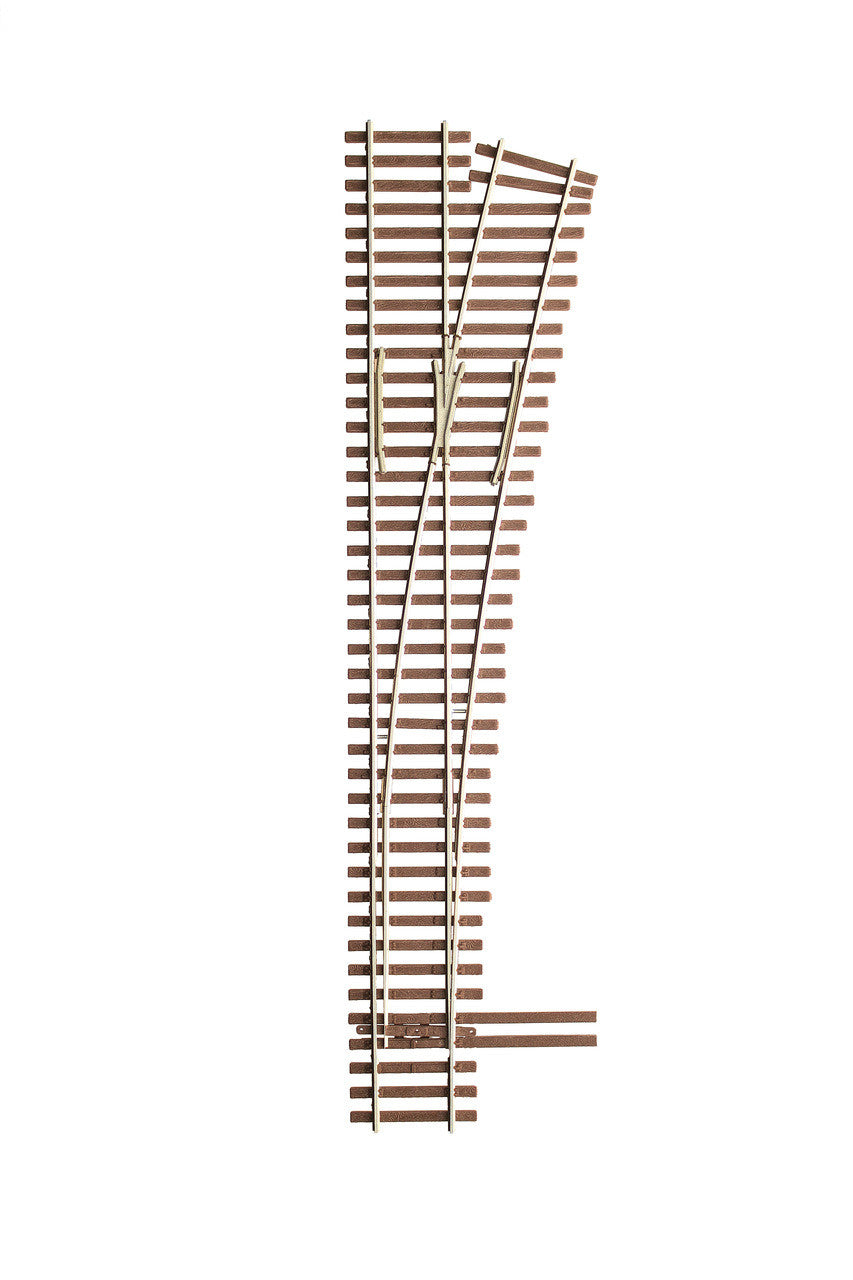

The Micro Engineering 14-713 is an HO Code 83 #5b curved-diverging right-hand turnout from ME's Ladder Track System — the first turnout off the mainline in a compact yard ladder. The diverging route is curved (16.2° exit angle instead of a standard #5's 11.4°), so the ladder steepens and the yard tracks fan out in less length.
Ladder Track System: The #5b is moulded without the extra ties at the point end so it butts directly against the next ladder turnout (#5c lead, #5d intermediate, #5e last). Pinwheel ladders are possible. Left-hand twin is #14-712.
Turnout features: DCC-friendly with an electrically isolated cast-metal frog (optional frog power via switch-machine contacts), metal guard rails, scale tie plates and spike heads, and ME's signature irregular tie spacing on brown ties.
- Scale: HO Standard Gauge
- Rail: Code 83 nickel-silver
- Hand: Right-hand, curved diverging route
- Frog: #5 (11.4°); diverging exit 16.2°
- Diverging radius: approx. 22" track-centre (closure 22.9", diverging 22.1")
- Length: 9.27"
- Distributor SKU: 255-14-713
In stock at Oakville Model Trains Depot.
