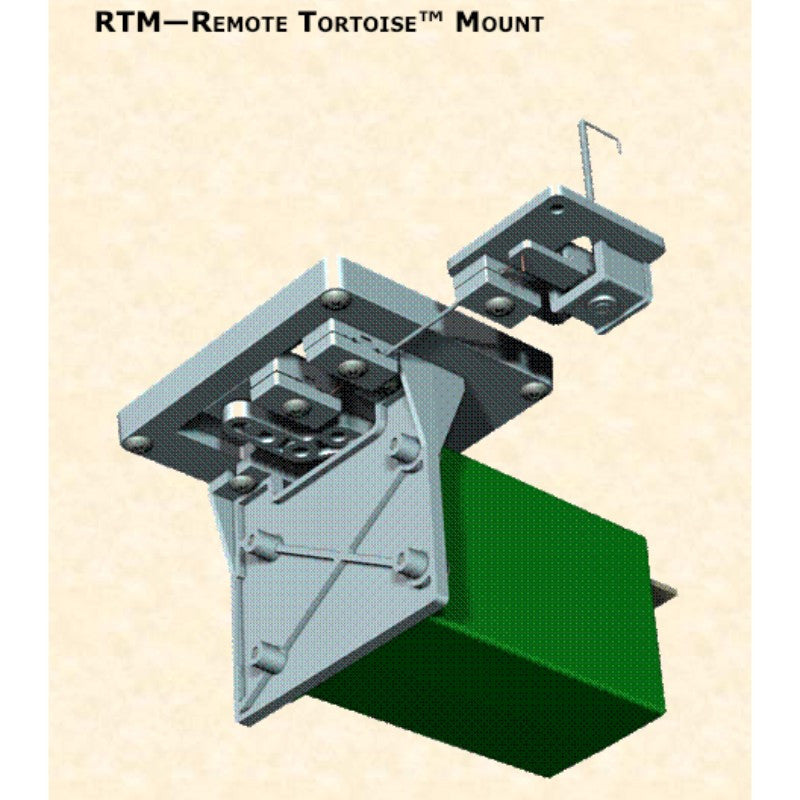

Circuitron 6100 is the RTM Remote Tortoise Mount — a molded base mechanism that lets you locate your Tortoise switch machine up to 18" away from the turnout it controls. An adjustable lever arm on the Tortoise output drives a stainless-steel wire inside a flexible Teflon tube (like a sub-miniature choke cable) to a compact actuator beneath the turnout. The points-actuating mechanism includes a spring wire and brass tube and only needs 1/2" of sub-roadbed clearance. Fully adjustable for all scales and brands of turnouts. Tortoise machine not included.
Specifications
- Type: Remote Mounting Kit
- Max Distance: 18" from turnout
- Clearance Required: 1/2" under sub-roadbed
- Compatibility: All scales / all turnout brands
- Includes: Base, lever arm, Teflon tube, spring wire, brass tube, actuator
- Brand: Circuitron
- SKU / Part #: 6100
