Description

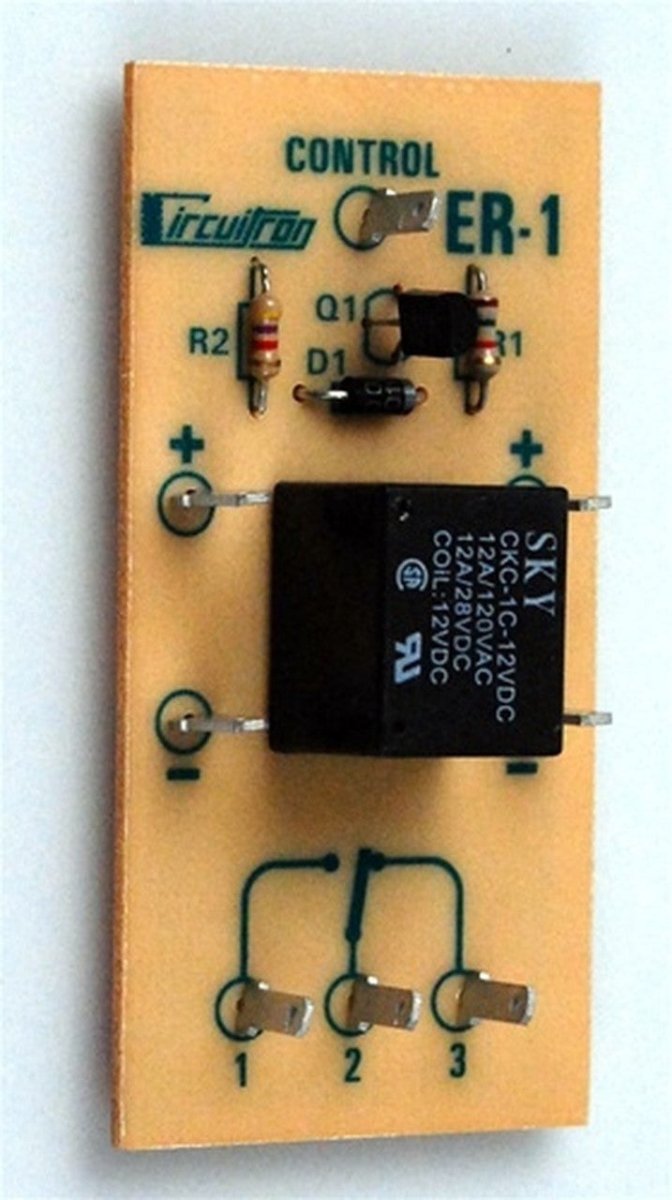

The Circuitron 5604 ER-1 External Relay with SPDT Relay is a small SPDT (single-pole double-throw) relay driver module that interfaces directly with any Circuitron detection circuit output — for switching extra AC or DC loads (turnout machines, layout lighting, fans, etc.).
What it does: Provides a 2 A SPDT relay with all driver circuitry built in — can be connected straight to the output of any Circuitron Block Occupancy Detector, Grade Crossing Detector, or auto-reverser. Use the relay contacts for automatic train control (power-off on block ahead), layout-lighting automation, or to switch heavier loads than the detection circuit can drive directly.
- Relay type: SPDT (single-pole double-throw)
- Contact rating: 2 A (AC or DC)
- Coil: 12 V
- Supply voltage: 11–14 V DC
- Drives from: Any Circuitron detection-circuit output
- Circuitron SKU: 5604 (Walthers 800-5604)
About Circuitron: A USA-made model-railroad electronics specialist (Maryville, Illinois) founded in the 1970s. Famous for the industry-standard Tortoise slow-motion under-table switch machine and its surface-mount cousin the SMAIL. The full range covers detection (block detectors, Opto-Sensor grade-crossing logic), automation (auto-reversers, external relays, twin-coil alternators), signal / lighting electronics (alternating flashers, ditch-light oscillators, strobe drivers), power supplies, and a complete set of Tortoise / SMAIL replacement parts plus the solderless ZipZ connection system. Most circuits work with AC, DC, or DCC track power unless specifically noted otherwise.
