Description

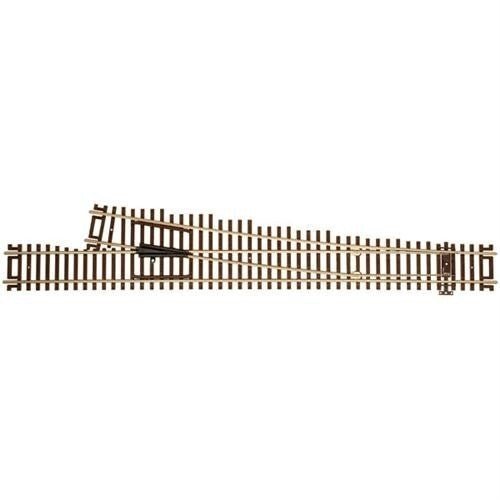

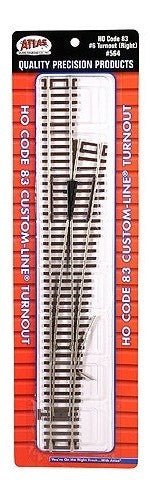

The Atlas 564 is an HO Code 83 #6 Custom-Line Mark IV right-hand turnout — right-hand mate to Atlas 563, completing a clean LH/RH pair for mainline industry-siding and passing-siding work.
#6 geometry. 1-in-6 frog ratio ≈ 9°30′ frog angle, ~25 mph scale speed through the diverging route. The workhorse turnout for branch-line junctions and industry leads coming off a mainline.
Mark IV build. Blackened metal powerable frog, rivet-less switch points, same geometry as Code 100 Custom Line. Drop-in compatible with under-table switch machines (Tortoise, etc.) or above-benchwork manual/remote machines (Atlas 584-587).
Specifications
- Scale: HO
- Rail Code: Code 83 nickel-silver
- Type: #6 Custom-Line Mark IV turnout
- Direction: Right Hand
- Frog Angle: #6 (≈9°30′, 1:6)
- Frog: Blackened metal (powerable)
- Brand: Atlas
- SKU / Item Number: 564
Pairs Well With
- Atlas 563 — #6 LH Custom-Line Mark IV (left-hand mate)
- Atlas 506 — Code 83 #6 RH Super-Track turnout
- Atlas 562 — #4 RH (yard / industrial)
- Atlas 566 — #8 RH (high-speed mainline)
