Description

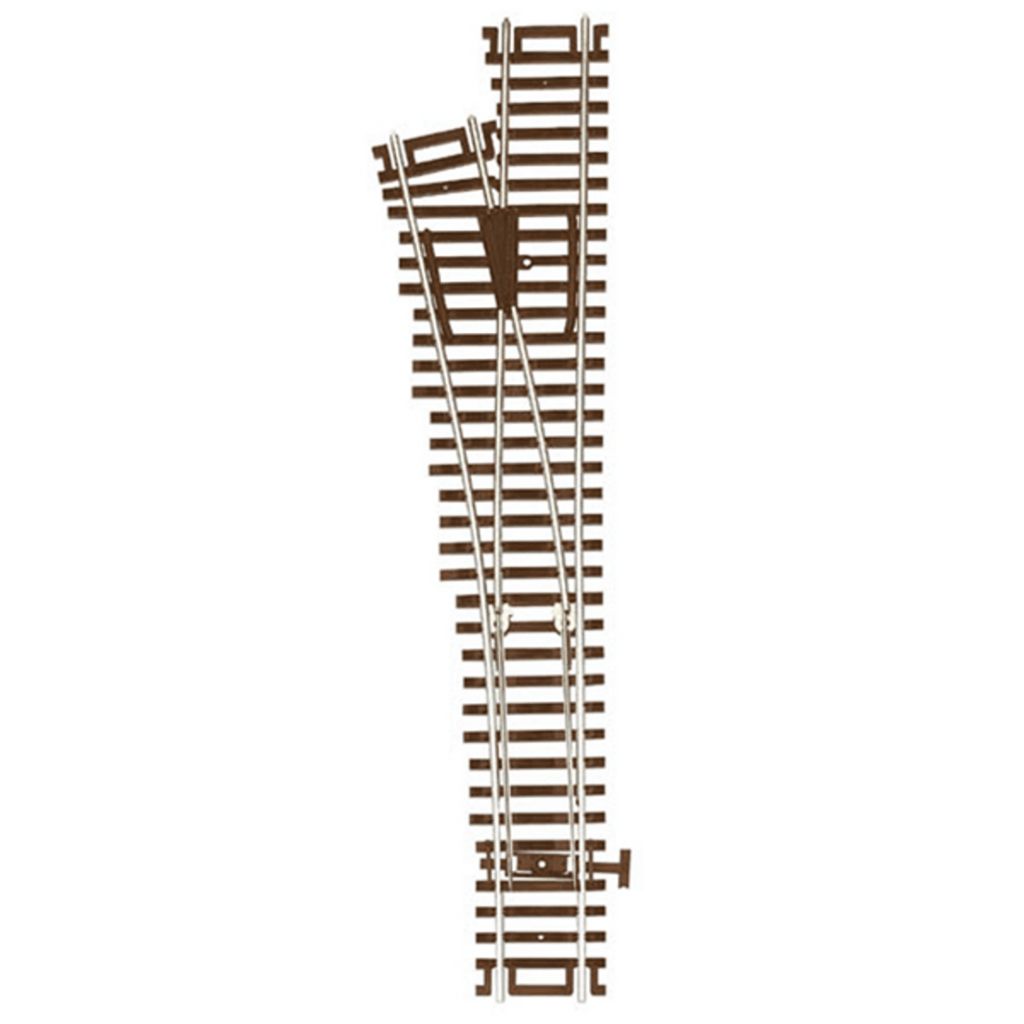

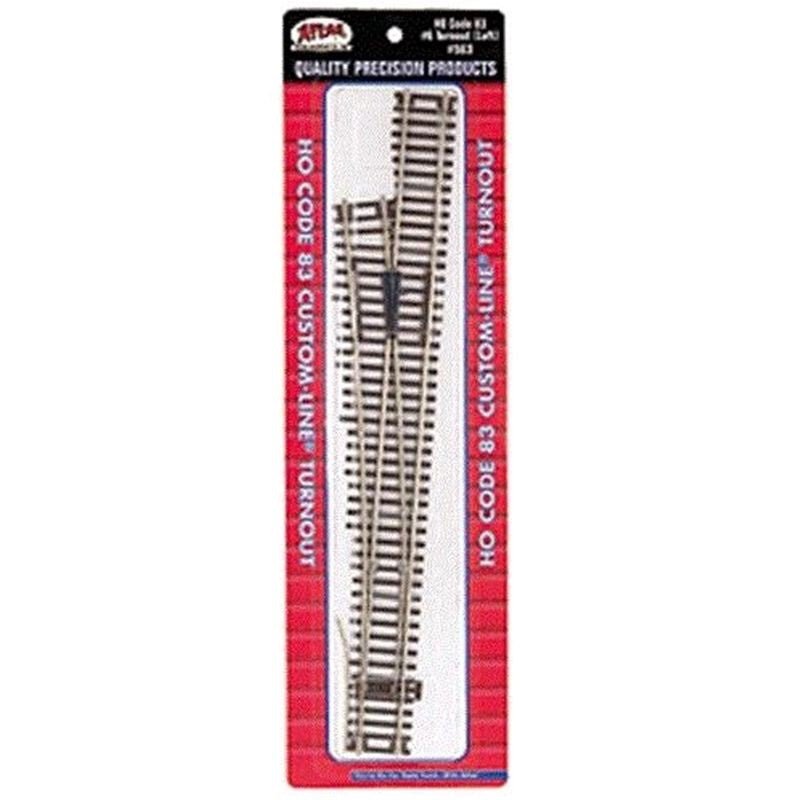

The Atlas 563 is an HO Code 83 #6 Custom-Line Mark IV left-hand turnout — the mainline-grade turnout, the right choice for through-route operation, passing sidings, and any junction where 20-25 scale-mph diverging speed matters.
#6 geometry. 1-in-6 frog ratio ≈ 9°30′ frog angle, ~25 mph scale speed through the diverging route — the standard frog size for industry sidings off the mainline, branch-line junctions, and passing siding ends. Wider than a #4 (Atlas 561/562), narrower and shorter than a #8 (Atlas 565/566).
Mark IV build. Blackened metal frog (powerable for reliable pickup on short-wheelbase steam and lighted passenger cars), rivet-less switch points (smoother throw, fewer derailments), same geometry as Code 100 Custom Line for compatibility with legacy plans.
Specifications
- Scale: HO
- Rail Code: Code 83 nickel-silver
- Type: #6 Custom-Line Mark IV turnout
- Direction: Left Hand
- Frog Angle: #6 (≈9°30′, 1:6)
- Frog: Blackened metal (powerable)
- Brand: Atlas
- SKU / Item Number: 563
Pairs Well With
- Atlas 564 — #6 RH Custom-Line Mark IV (right-hand mate)
- Atlas 505 — Code 83 #6 LH Super-Track turnout (alternate geometry)
- Atlas 561/562 — #4 LH/RH (yard / industrial)
- Atlas 565/566 — #8 LH/RH (high-speed mainline)
