Description

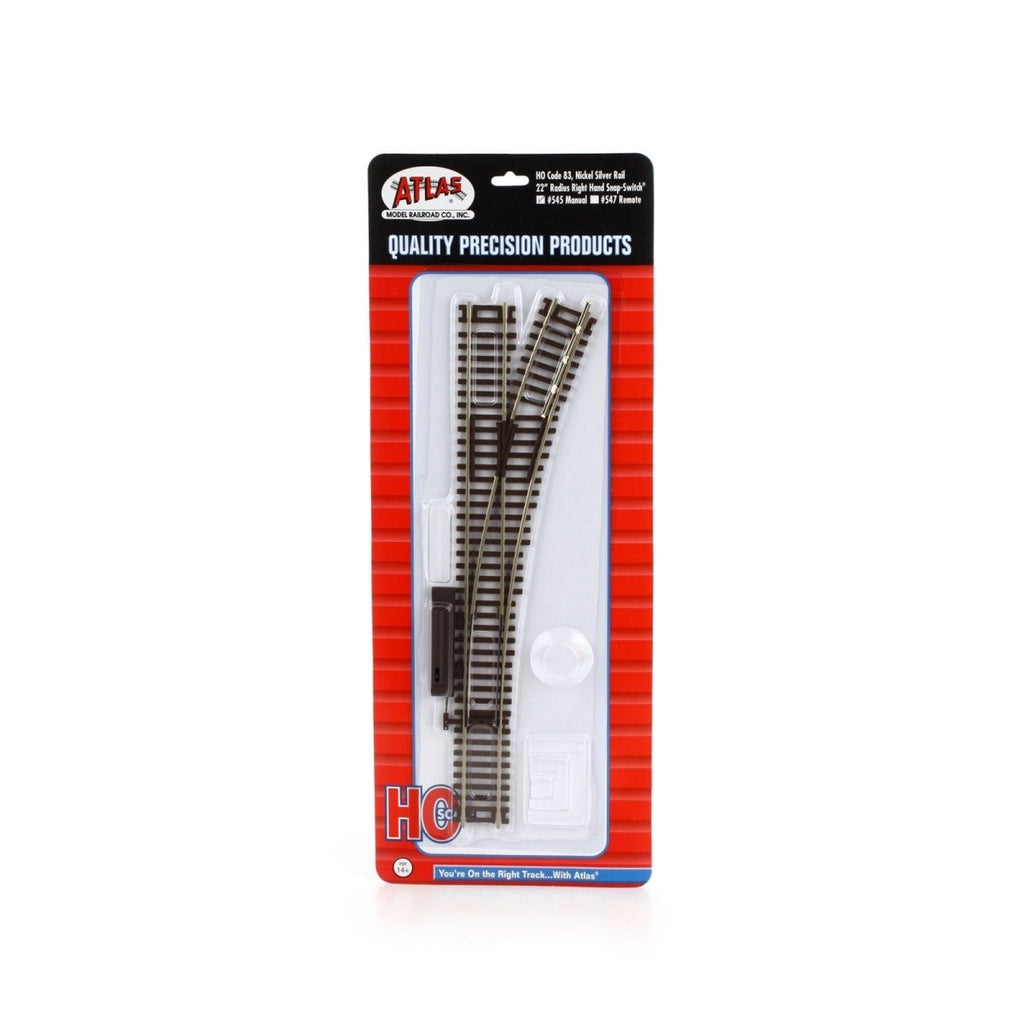

The Atlas 545 is an HO Code 83 right-hand 22-inch radius Snap-Switch manual turnout — the right-hand mate to Atlas 544 (LH 22" manual), with the same wider 22" diverging radius that lets 6-axle diesels and 80-foot passenger cars take the curved route without overhang grief.
Geometry. 22" radius diverging route matched to Atlas 535 (22" curve, 6pc) and 537 (22" 1/3 section). A 1/3 22" radius section is pre-attached to the curved leg so the exit equals a full 22" arc when joined to standard track. Plastic insulated frog — simple wiring, no short-circuit risk on DC or starter DCC.
Manual throw lever is the standard Atlas above-benchwork lever; swap to remote with Atlas 65/66 if you want electric control later. Right-hand mate of #544 makes a clean LH/RH pair at a passing siding or yard ladder where wide-radius geometry matters.
Specifications
- Scale: HO
- Rail Code: Code 83 nickel-silver
- Type: Snap-Switch turnout, manual throw
- Direction: Right Hand
- Diverging Radius: 22"
- Frog: Plastic (insulated)
- Brand: Atlas
- SKU / Item Number: 545
Pairs Well With
- Atlas 544 — LH 22" Snap-Switch manual (left-hand mate)
- Atlas 546 — LH 22" Snap-Switch remote
- Atlas 535 — 22" radius curve (6pc)
- Atlas 537 — 22" radius 1/3 section
