Description

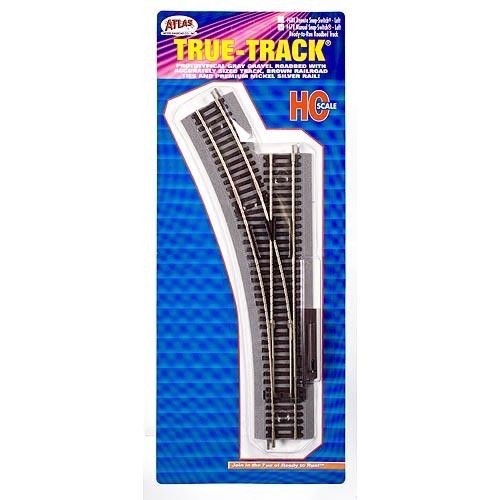

The Atlas 478 is an HO scale Left Hand manual snap-switch turnout in the True-Track Code 83 system. The diverging route follows Atlas's standard snap geometry (equivalent to an 18″ radius curve), and the points are thrown manually with the integrated over-center spring throwbar. The one-piece pre-ballasted gray roadbed drops in flush with other True-Track sections — no separate cork or foam required.
Key Features
- Code 83 nickel-silver rail on simulated brown wood ties
- One-piece molded gray ballast roadbed
- Manual throwbar with over-center spring detent
- Power-routing frog
- NMRA wheel-flange profile
Specifications
- Scale: HO
- Rail Code: Code 83
- Type: Snap-Switch Turnout
- Direction: Left Hand
- Operation: Manual
- Diverging radius: 18″ (Atlas standard curve)
- System: True-Track (integrated roadbed)
- Brand: Atlas
- SKU: 478
Right-hand mate: Atlas #479. For powered operation use the remote-actuated #480 (LH) / #481 (RH). Combine with True-Track straights (#452/#453/#454), 18″ curve (#460), and the 90° crossing (#476) for complete sectional layouts.
