Description

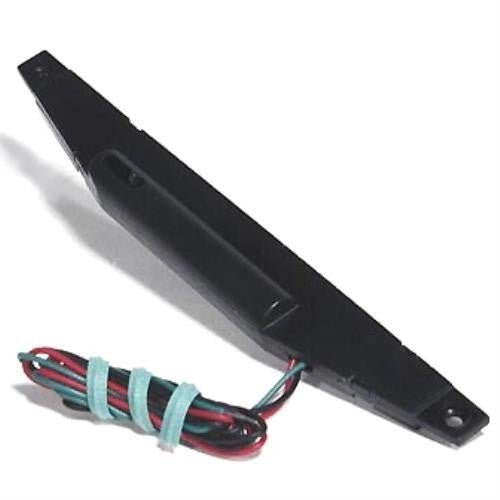

The right-hand companion to the #2715 — a standalone AC twin-coil switch machine designed to screw onto Atlas N Code 80 #2700-series right-hand turnouts. Converts a manual #2707 to remote operation or replaces a damaged integrated machine on a #2705 remote turnout. (Note: this is NOT a DCC accessory in itself; it's an AC twin-coil solenoid that CAN be driven by a DCC accessory decoder.)
Twin-coil AC solenoid (12-16V AC accessory tap, momentary pulse). Two screws attach to the turnout's tie strip; a lever arm engages the throw bar. Wire the three leads to an Atlas #56 Controller or any momentary push-button setup.
How to use
- Screw to the tie strip of an Atlas Code 80 #2707 (RH manual) or #2709 (Wye manual) turnout, replacing the manual lever.
- Wire the three leads to an Atlas #56 Controller or any momentary AC pulse source.
- Power from 12-16V AC accessory tap — never continuous DC.
- Designed specifically for #2700-series turnouts; won't fit #2750-series Custom-Line.
- Can be driven by DCC accessory decoders (Digitrax DS64, NCE Switch-It).
Specifications
- Scale: N (1:160)
- Type: Twin-Coil Solenoid Switch Machine (Standalone)
- Direction: Right Hand
- Compatible With: Atlas #2700-series Code 80 turnouts
- Power: 12-16V AC, momentary pulse
- Brand: Atlas
- SKU / Item Number: 2716
