Description

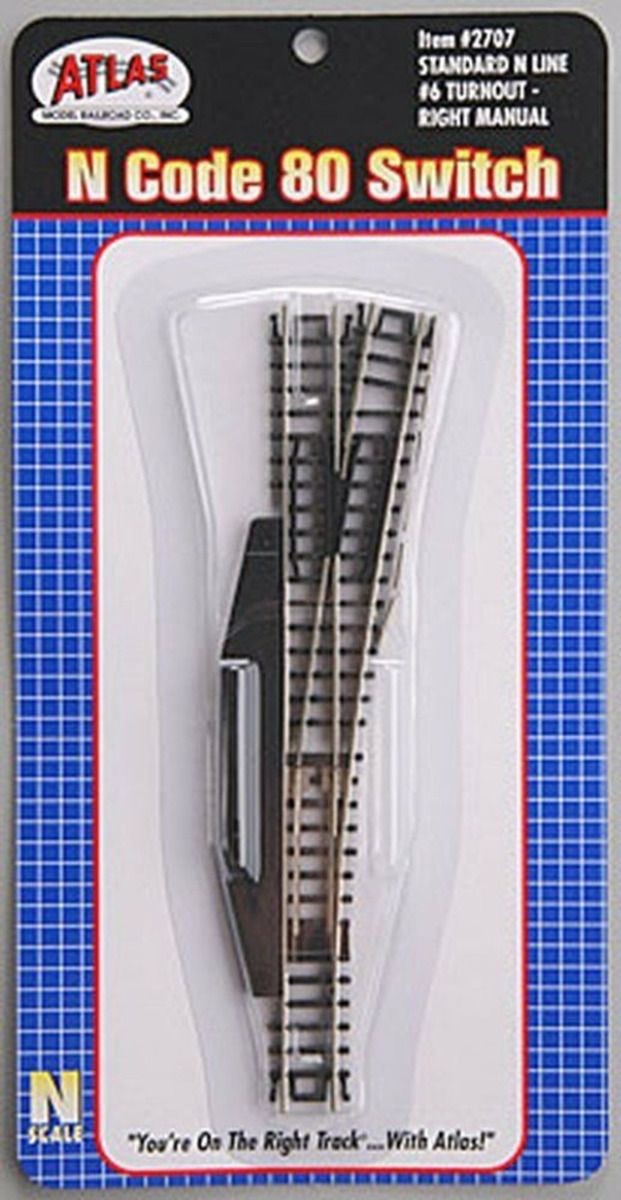

The Atlas #2707 is the manually-thrown right-hand version of the #6 frog turnout in N Code 80 — same track geometry as the #2705 (remote) but with the points thrown by a small sliding lever on the housing instead of a powered switch machine. Companion to the #2706 (LH manual), this is the right-hand piece for facing-point yard ladders and manual crossovers.

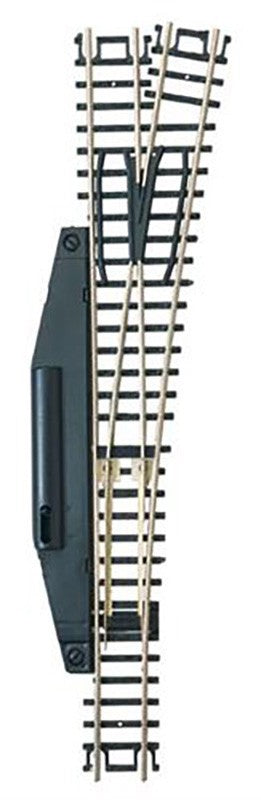

Nickel-silver Code 80 rail on moulded black ties with wood-grain detail. The manual throw lever sits on the tie strip and pushes the points back and forth. Later upgradeable to remote with the Atlas #2716 (RH) standalone switch machine, which is designed to screw onto #2700-series manual turnouts.
How to use
- Throw by hand using the small sliding lever on the housing — no power required.
- Connect track rails with Atlas Code 80 rail joiners (#2535).
- To later convert to remote: install Atlas #2716 (RH) standalone switch machine (sold separately).
- Pair with #2706 (LH manual) for double-track crossovers; or use #2705 (RH remote) where remote control is needed from day one.
- Best for: hidden staging tracks, yard ladders worked by hand, lower-cost branchline layouts.
Specifications
- Scale: N (1:160)
- Rail Code: Code 80
- Type: Manual Turnout
- Frog Number: #6
- Direction: Right Hand
- Brand: Atlas
- SKU / Item Number: 2707
