Description

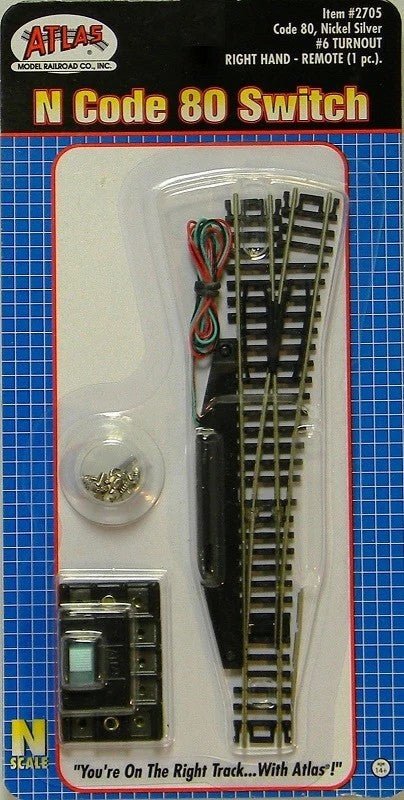

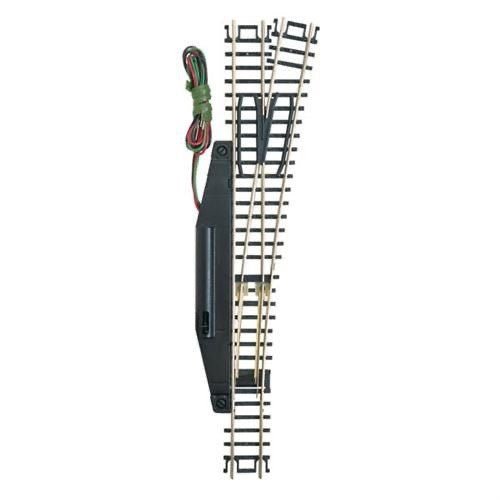

The right-hand companion to the #2704 — a No.6 frog right-hand turnout in N Code 80 with the Atlas integrated remote switch machine pre-mounted to the tie strip. Drop in, wire up, throw remotely from your control panel.
Nickel-silver Code 80 rail on moulded black ties with wood-grain detail. The integral switch machine is a twin-coil AC solenoid (12-16V AC accessory tap, momentary pulse). A small sliding manual lever on the machine lets you throw the points by hand for testing. The included Switch Control Box (Atlas #56) provides momentary push-button control from a control panel.
How to use
- Power from 12-16V AC accessory tap — never continuous DC.
- Wire the three machine leads to the included Switch Control Box or any momentary push-button setup.
- Throw manually with the sliding lever on the machine body for testing or fault recovery.
- Connect track rails with Atlas Code 80 rail joiners (#2535).
- Pair with #2704 (LH remote) for double-track crossovers; or use #2707 (RH manual) where remote control isn't needed.
Specifications
- Scale: N (1:160)
- Rail Code: Code 80
- Type: Remote Turnout
- Frog Number: #6
- Direction: Right Hand
- Brand: Atlas
- SKU / Item Number: 2705
