Description

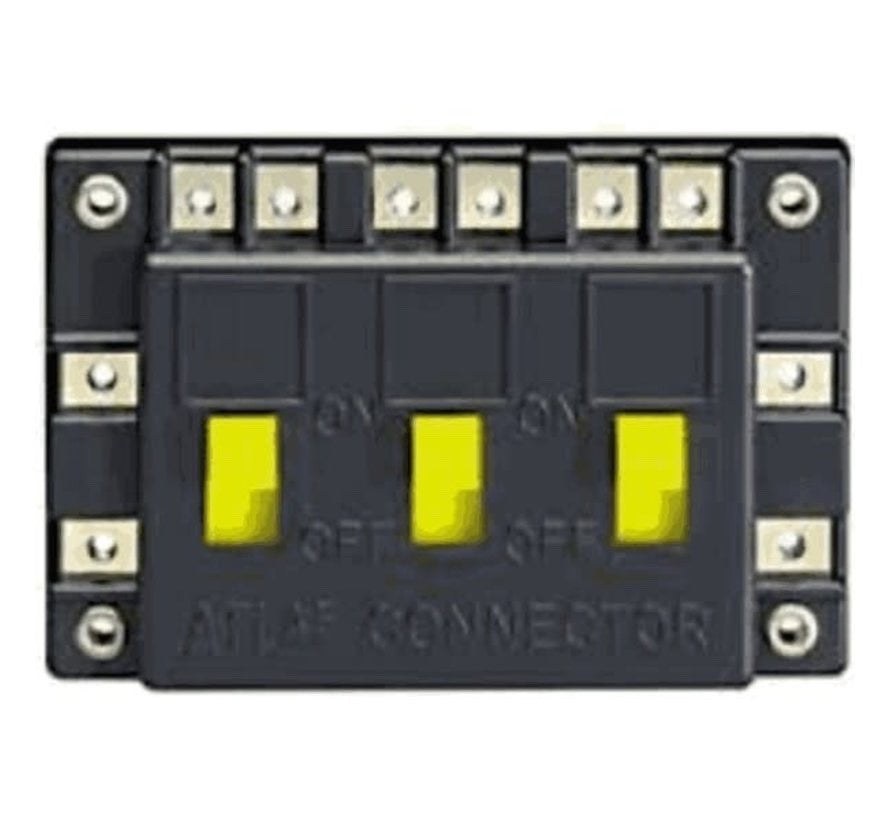

The Atlas #205 Connector is a small panel-mount box with three SPST on-off switches wired in parallel. Use it inline with any layout circuit — track block, accessory bus, lighting feed — when you want simple, click-it on-or-off control without a more elaborate cab-control system.
Three independent SPST switches in one molded plastic housing with thumb-screw terminals. Can be daisy-chained side-by-side with other Atlas Connector boxes (#205, #210, #215, #220) for a custom control panel of any size.
How to use
- Wire each switch inline with one rail of a track block, isolating that block from power when the switch is off.
- Or wire each switch in series with an accessory (building light, signal bridge, structure) for individual on/off control.
- Couple side-by-side with other Atlas Connector boxes to build modular control panels.
- Use 18-22 AWG hookup wire and Atlas #201 spade connectors at the screw terminals for fast hookup.
- Power capacity is ample for any DC track block or accessory at typical model-railroad voltages (under 16 V).
Specifications
- Scale: All scales / Universal
- Type: Control Box — 3× SPST On/Off
- Switches: 3 (independent SPST)
- Brand: Atlas
- Item Number: 205
