Description
The Kadee #247 is a hand tap and drill set for the 1-72 machine screw thread — the middle size in the model railroad fastener family, ideal for HO coupler and truck mounting. High-speed steel construction, sized for hand turning in a pin vise. Tap clean, straight threads in styrene, brass, and zamac without breaking the tip.

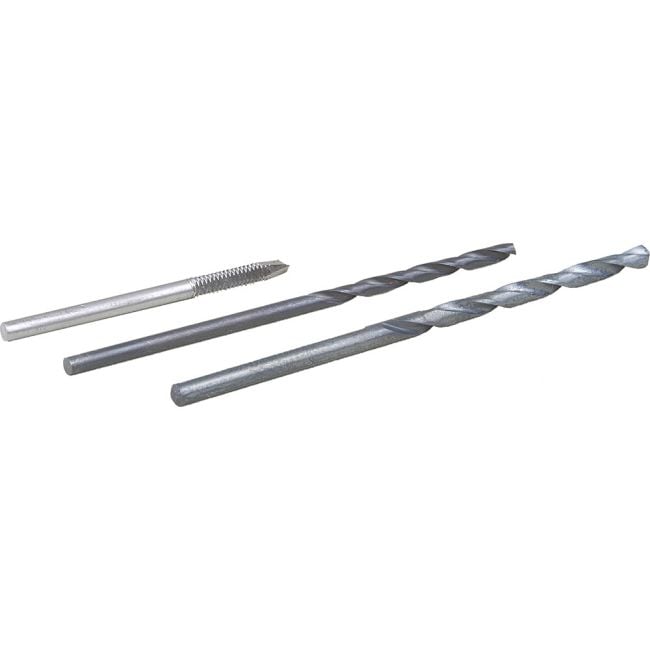

What's in the set
- 1 hand tap, 1-72 thread
- #53 drill — tap hole (drill this size, then thread with the tap)
- #48 drill — clearance hole (screw passes through freely)
How to use
- Drill the tap hole with the #53 drill, then turn the tap in slowly, backing off a quarter-turn regularly to clear chips
- Use light oil when tapping metal; tap dry in styrene
- Pairs with Kadee 1-72 stainless screws (#1683, #1686, #1688) and #1681 washers
Specifications
- Scale: All scales
- Thread: 1-72
- Drills: #53 (tap) and #48 (clearance)
- Brand: Kadee® — Made in USA
- SKU / Item: #247
