Description

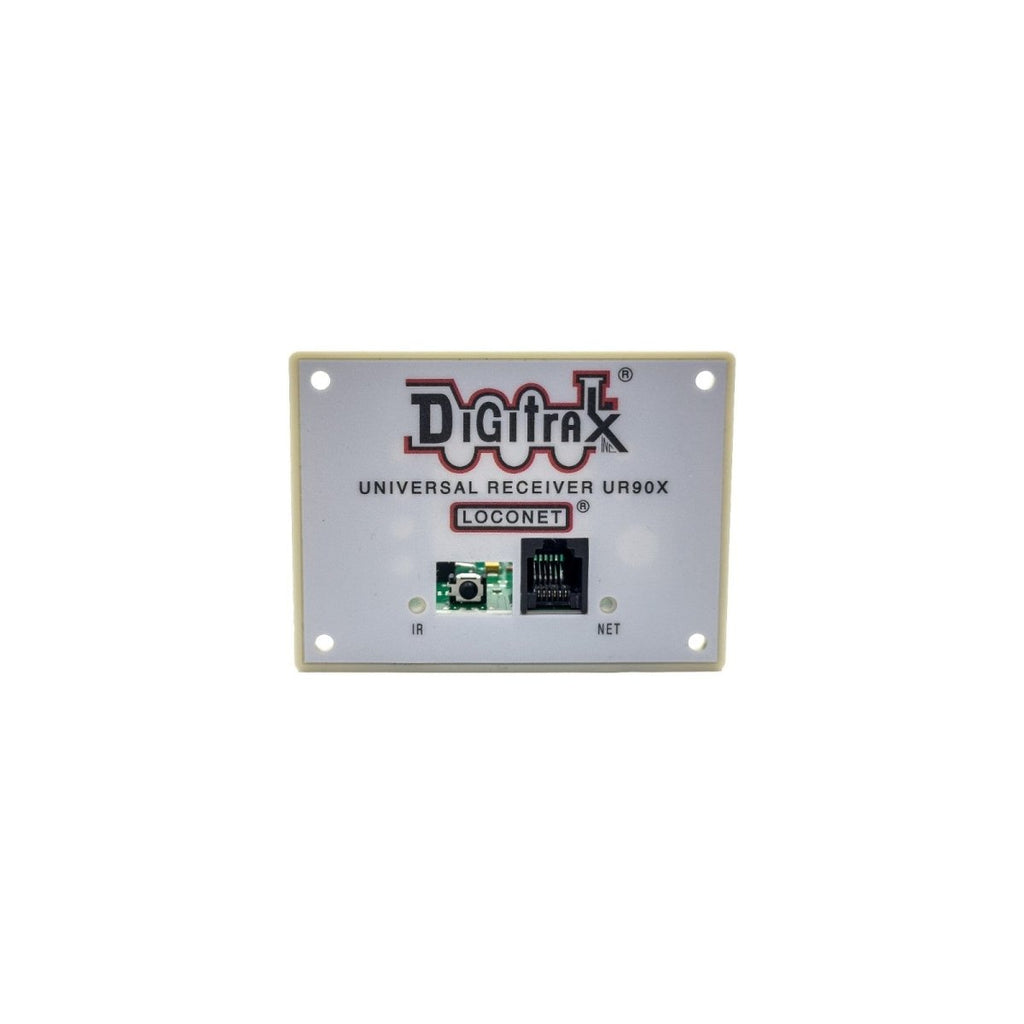

The Digitrax UR90X is the LocoNet Infrared (IR) Receiver — an IR-receiver fascia panel for use with Digitrax IR throttles (DT400IR, DT500IR, UT4R, etc.). Detects the throttle's IR pulses and injects them into LocoNet. Note: IR is one-way (simplex) — for two-way wireless use the UR93 Duplex Transceiver instead.
- Plug-detachable connections — simple maintenance and troubleshooting
- 1 RJ12 throttle jack on the front panel (for wired throttle backup)
- IR + NET indicator LEDs
- 2 RJ12 LocoNet jacks on the rear for daisy-chaining
- Power-sharing charge circuitry for throttles connected to up to 6 Universal Panels (requires external 12V supply)
- Use with 6-conductor telephone cable + RJ12 6-pin connectors for daisy-chaining LocoNet around the layout
About Digitrax: Digitrax is the North-American DCC pioneer — the LocoNet bus and full NMRA DCC compliance are interoperable with all NMRA-DCC-compliant systems and accessories.
In stock at Oakville Model Trains Depot.
