Description

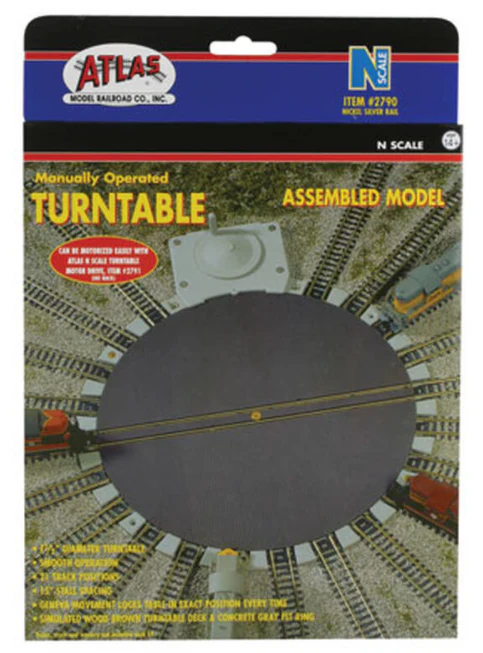

The Atlas #2790 is an N scale manually-operated turntable, fully assembled — a 7-1/2" diameter (≈22" prototype) deck with 21 indexed track positions in 15° increments. A Geneva-style indexing mechanism locks the bridge in exact alignment with each radial track every time, eliminating the wheel-stub headaches that come from sloppy hand-aligned turntables.
The pit ring is molded in simulated concrete gray; the bridge deck is finished in weathered wood brown. Out of the box it's hand-cranked; add the matching #2791 Motor Drive Unit for under-table powered operation.
How to use
- Pre-assembled — drop in to a 7-1/2" hole cut in your benchwork. Feed power across the bridge from your DC pack or DCC bus.
- The 15° spacing matches the stall spacing of the Atlas #2843 N 3-Stall Brick Roundhouse — pair the two for an instant N-scale engine terminal.
- Add Atlas #2791 for motorized operation (gear-driven from under the table).
- Rail is nickel-silver and accepts Code 80 sectional or flex via standard joiners.
- Maximum locomotive length: roughly 6.5" coupler-to-coupler (most 4-axle road switchers and most 6-axle SD/Big Boy-class Ns fit).
Specifications
- Scale: N (1:160)
- Type: Assembled turntable, manually-operated
- Bridge diameter: 7-1/2"
- Indexing: 21 positions, 15° increments, Geneva-movement lock
- Compatible motor drive: #2791 (sold separately)
- Brand: Atlas
- SKU / Item Number: 2790
