Description

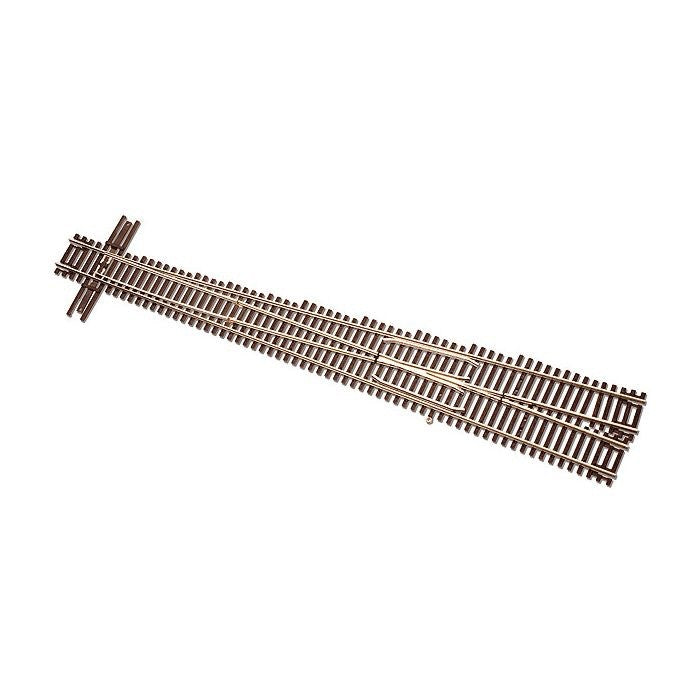

The Atlas #2054 is a Code 55 #10 left-hand turnout — Atlas's broadest mainline turnout in the prototypically scaled Code 55 system. A #10 frog gives the gentlest diverging angle of the line — preferred for prototype-style high-speed mainline crossovers where smooth running is paramount.
Manual-throw turnout with built-in spring detent. The Atlas Code 55 turnout family is the prototypically scaled N-scale switch system — .055" tall nickel-silver rail in brown ties, concealed joiners, and matched diverging-route geometry to Atlas's Code 55 curves. All routes are factory powered.
How to use
- Use as the left-diverging turnout in visible mainline crossovers — the broad geometry looks especially prototypical.
- Pair with #2055 (right-hand #10) for symmetric crossovers.
- Throw manually or with under-table machine like Atlas #2065 or Tortoise.
- All routes electrically powered.
- Best paired with broader-radius curves (15"+) for smooth visual flow.
Specifications
- Scale: N (1:160)
- Rail Code: 55
- Frog Number: #10
- Direction: Left-Hand
- Type: Turnout
- Throw: Manual (spring-detent)
- Brand: Atlas
- Item Number: 2054
