Description

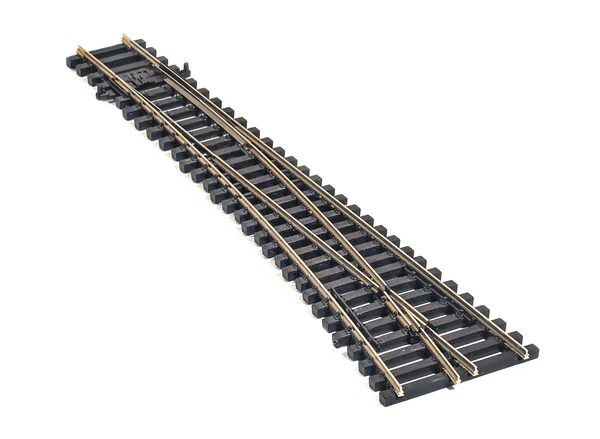

A PECO TT:120 (1:120) Code 55 Streamline medium-radius right-hand turnout with Unifrog.
Unifrog: PECO's universal frog — it ships configured as InsulFrog (plug-and-play, no extra wiring), but has a wire under the frog that you can connect to a frog-juicer or accessory switch later if you want Electrofrog-style live-frog operation. The best of both worlds.
Specifications
- Scale: TT:120 (1:120)
- Gauge: 12 mm
- Rail code: Code 55
- Type: Medium-radius right-hand turnout
- Frog: Unifrog
- Direction: Right-hand
- Radius geometry: Medium-radius
- Range: PECO Streamline
- SKU: SL-U1295
Wiring
- Default operation is InsulFrog-style — plug in and run, no extra wiring.
- To convert to live frog: cut the small wire link under the turnout and connect the exposed wire to a frog-juicer or accessory switch.
Compatible motors
- PL-10 below-baseboard solenoid motor (requires a 40 × 24 mm cut-out).
- PL-11 side-mounted solenoid motor — clips on without drilling, ideal for OO/HO Setrack layouts.
- PL-1000 series Twistlock motor for an even simpler retrofit.
- For DCC turnout control, drive any of the above with an accessory decoder (NCE Switch-It, Digitrax DS64, etc.).
