Description

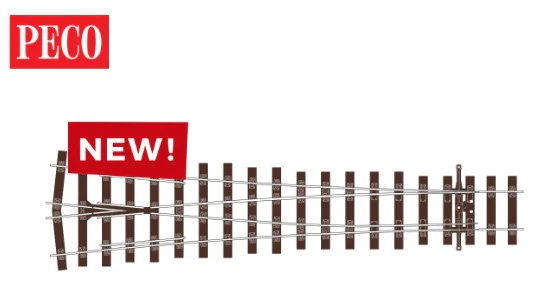

A PECO OO (1:76) Code 75 Streamline Bullhead large-radius Y / Wye turnout with Unifrog. Large radius — gentlest curve, equivalent to a #8 frog. Best appearance and smoothest running for long-wheelbase mainline locomotives.
Unifrog: PECO's universal frog — it ships configured as InsulFrog (plug-and-play, no extra wiring), but has a wire under the frog that you can connect to a frog-juicer or accessory switch later if you want Electrofrog-style live-frog operation. The best of both worlds.
Specifications
- Scale: OO (1:76)
- Gauge: 16.5 mm
- Rail code: Code 75
- Type: Large-radius y / wye turnout
- Frog: Unifrog
- Radius geometry: Large-radius
- Range: PECO Streamline Bullhead
- SKU: SL-U1198
Wiring
- Default operation is InsulFrog-style — plug in and run, no extra wiring.
- To convert to live frog: cut the small wire link under the turnout and connect the exposed wire to a frog-juicer or accessory switch.
Compatible motors
- PL-10 below-baseboard solenoid motor (requires a 40 × 24 mm cut-out).
- PL-11 side-mounted solenoid motor — clips on without drilling, ideal for OO/HO Setrack layouts.
- PL-1000 series Twistlock motor for an even simpler retrofit.
- For DCC turnout control, drive any of the above with an accessory decoder (NCE Switch-It, Digitrax DS64, etc.).
