Description

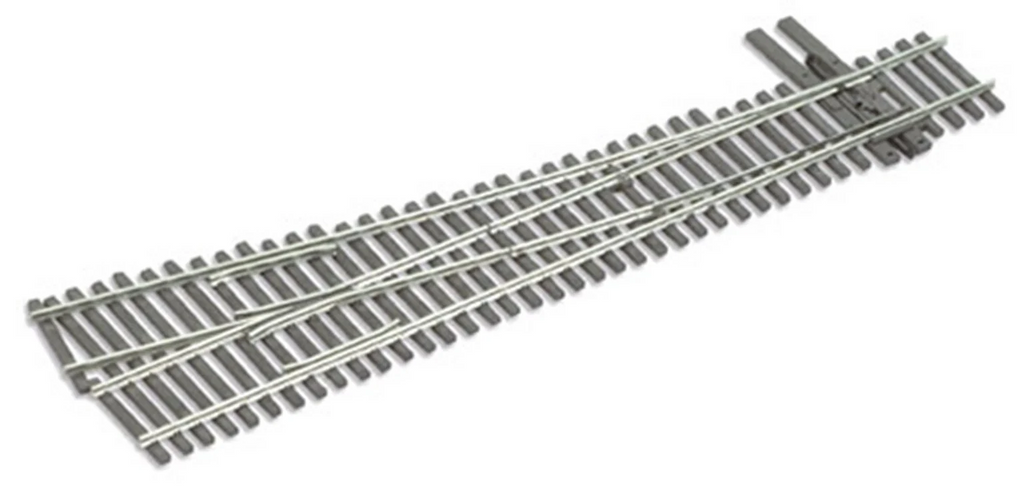

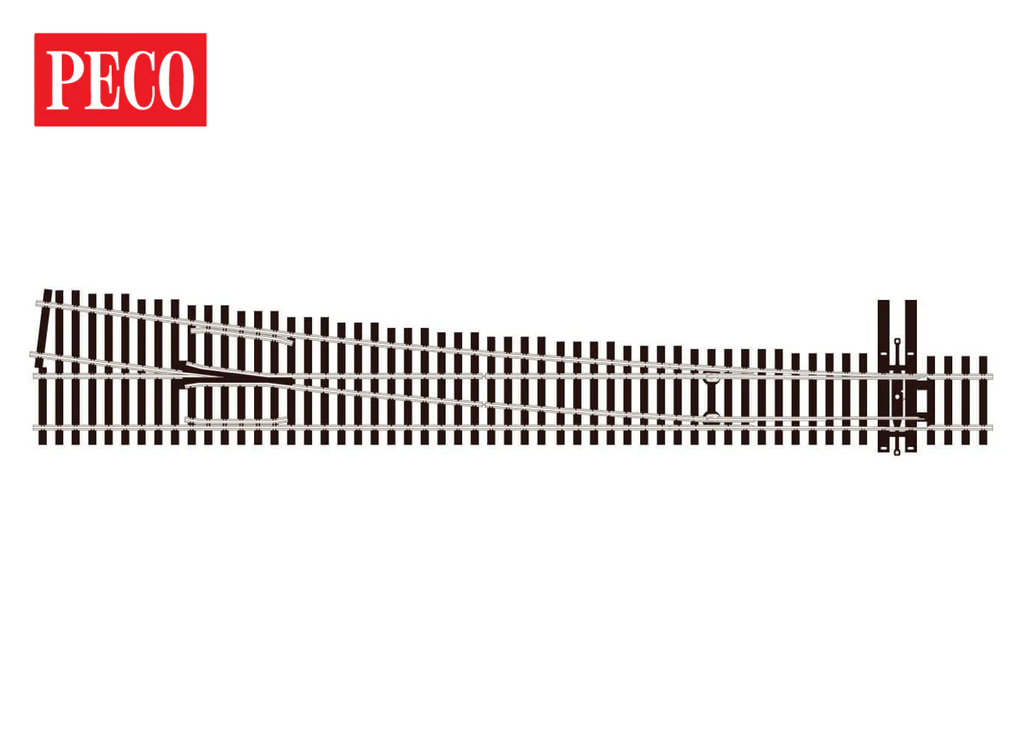

A PECO HO / OO (1:87 / 1:76) Code 83 Streamline right-hand turnout with InsulFrog.
InsulFrog: the frog itself is insulating plastic — there's a small dead-spot through it, but you don't need any extra wiring for DCC. Plug it in and run.
Specifications
- Scale: HO / OO (1:87 / 1:76)
- Gauge: 16.5 mm
- Rail code: Code 83
- Type: Right-hand turnout
- Frog: InsulFrog
- Direction: Right-hand
- Range: PECO Streamline
- SKU: SL-8381
Wiring
- No extra wiring required — works on DC and DCC out of the box.
- Power feed at the toe end is fine; the closure rails are powered through the point blades.
Compatible motors
- PL-10 below-baseboard solenoid motor (requires a 40 × 24 mm cut-out).
- PL-11 side-mounted solenoid motor — clips on without drilling, ideal for OO/HO Setrack layouts.
- PL-1000 series Twistlock motor for an even simpler retrofit.
- For DCC turnout control, drive any of the above with an accessory decoder (NCE Switch-It, Digitrax DS64, etc.).
