Description

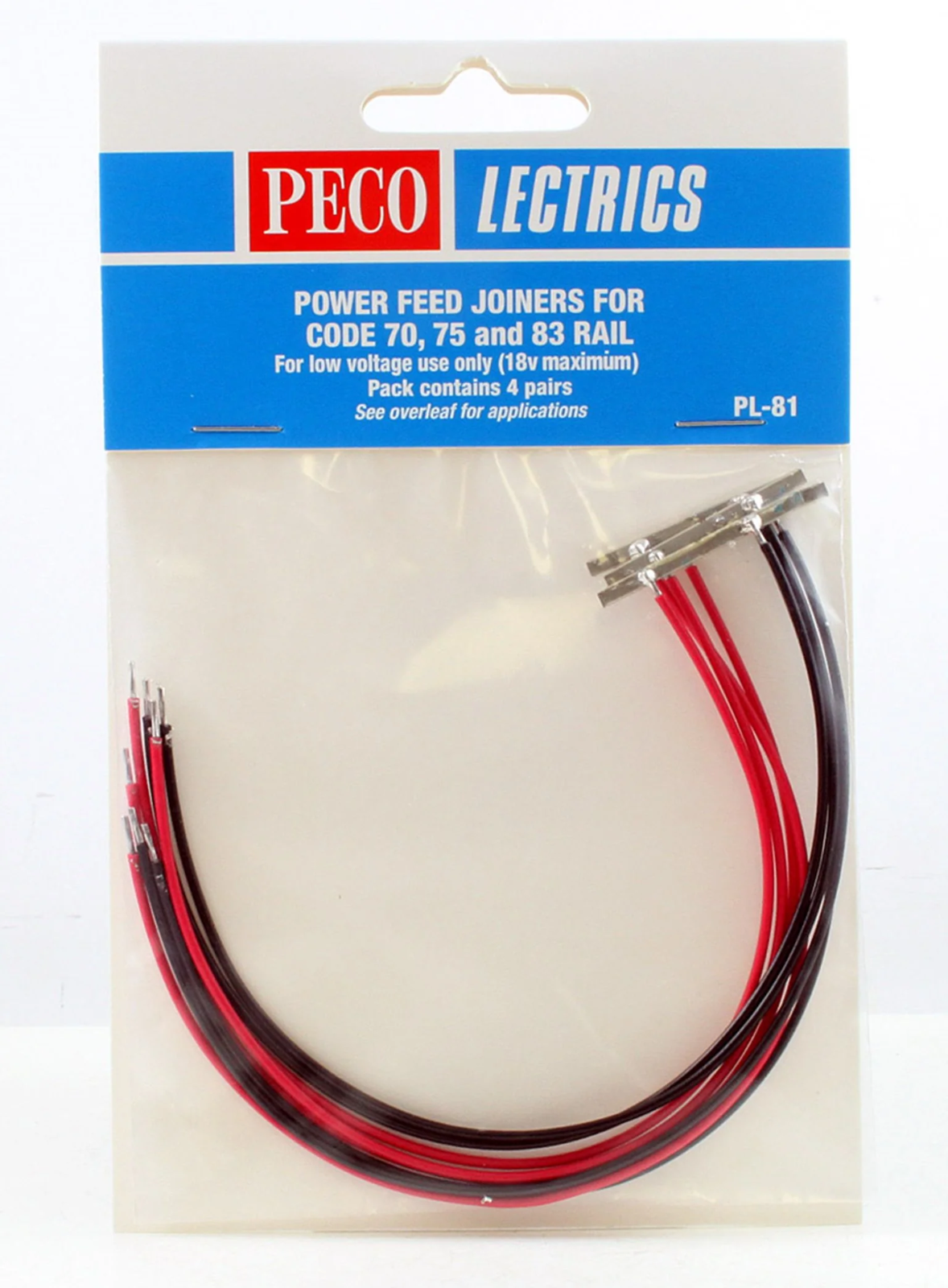

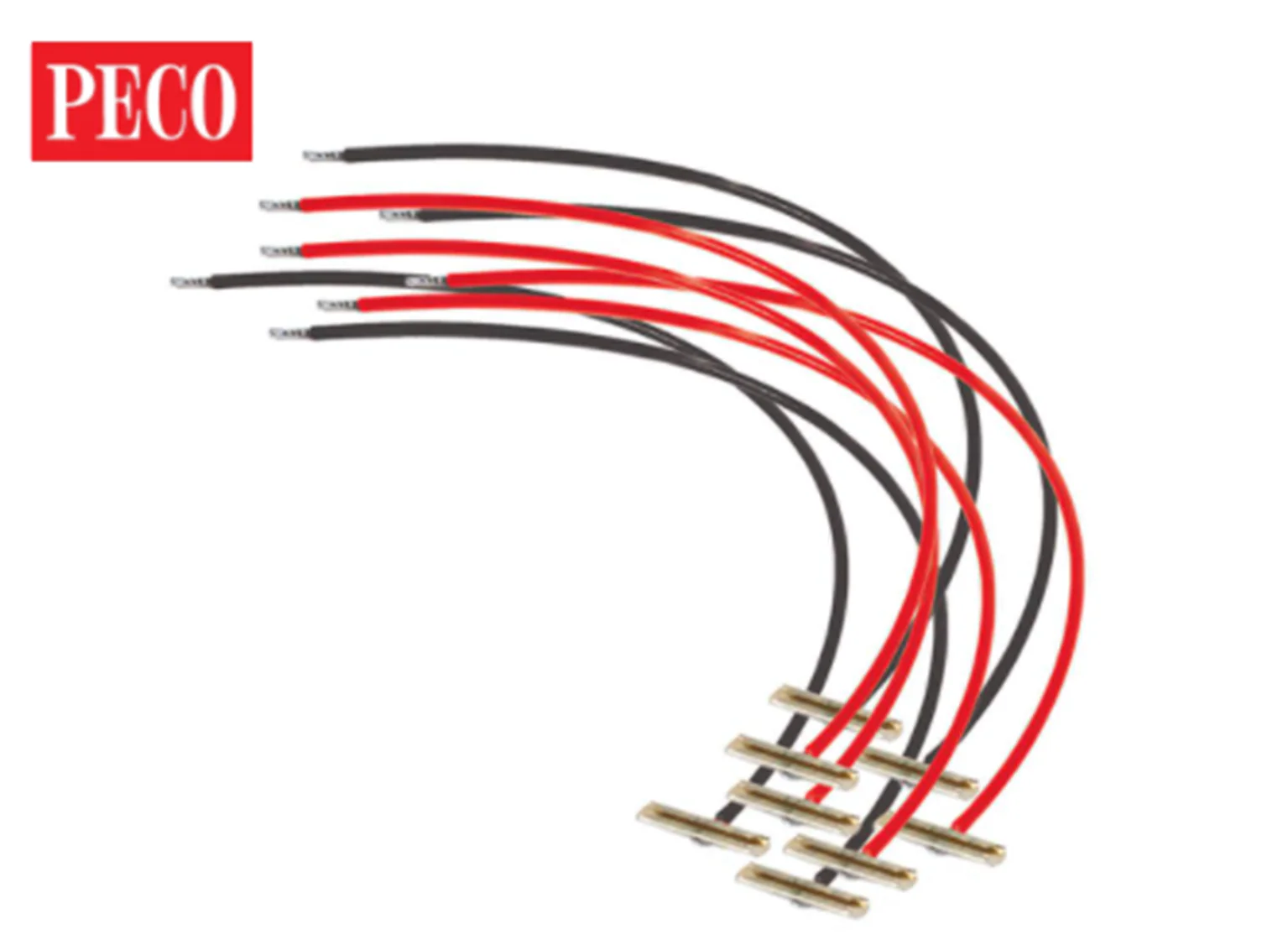

Eight Code 70 / 75 / 83 power feed joiners — pre-soldered rail joiners with 204 mm of dropper wire already attached. Slide them onto the rail ends as you would a normal joiner, and the dropper wire feeds straight down into your wiring bus. Avoids the risk of melting sleepers with a soldering iron, and it's much faster than soldering directly to the rail. 4 pairs (8 joiners) per pack.
What you get
- 4 × pairs of pre-soldered rail joiners (8 joiners total)
- 204 mm of dropper wire on each
Specifications
- Fits: Code 70 / 75 / 83
- Wire length: 204 mm
- Quantity: 4 pairs (8 joiners)
- SKU: PL-81
Use & compatibility
- Works on DC and DCC equally — these are just rail joiners with a dropper, no electronics inside.
- For DCC, plan a power feed every 6–8 ft (1.8–2.5 m) of track to avoid voltage drop.
- Pair with PL-39 terminal blocks and PL-38 wire to extend the dropper to your bus without soldering.
