Description

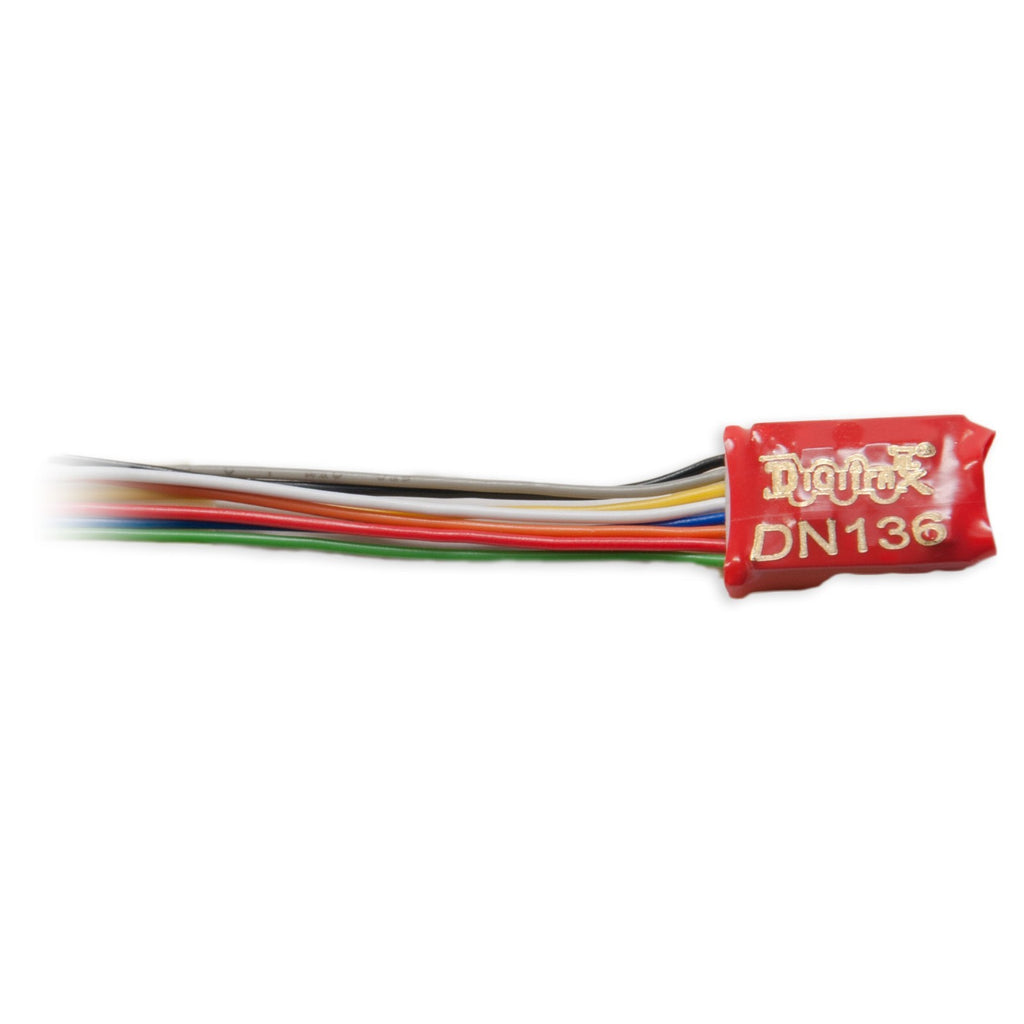

The Digitrax DN136D is a N / HO DCC mobile decoder — 1.0A continuous / 1.5A peak motor control, 3 function outputs with Digitrax FX3 prototypical lighting effects. One decoder fits n / ho.
Wired motor + function decoder — solder leads to motor, lights, and pickups. Tiny PCB squeezes into either N or HO hood / cab space.
Fitment: Hard-wired install in N or HO locomotives — compact 0.55″ × 0.40″ × 0.2″ (14×10×5mm) board fits inside both scales. Plug / form: Bare-wire installation (no plug) — bring your own NMRA colour-coded leads.
Digitrax LocoMotion® System: Torque compensation for silky-silent operation, 128 / 28 / 14 speed-step support, momentum-based accel/decel, user-selectable normal direction of travel, switching speed feature for fast yard work, 3-step speed tables (start / mid / max voltage), 28-step speed tables with 256-level resolution, and SuperSonic™ silent motor drive.
FX3 function outputs drive lighting with realistic prototype effects: constant brightness with directional or independent control, optimized LED-or-incandescent operation, ditch-light alternating flash, Mars lights, gyralights, strobes, and configurable pulse mode on all outputs.
About Digitrax: Digitrax is the North-American DCC pioneer — the LocoNet bus and full NMRA DCC compliance are interoperable with all NMRA-DCC-compliant systems and accessories.
- Scale: N / HO
- Motor current: 1.0A continuous / 1.5A peak
- Function outputs: 3 × FX3
- Plug / form: Bare-wire installation (no plug) — bring your own NMRA colour-coded leads
- Standard: NMRA DCC + LocoNet transponding ready
- SKU: DN136D
In stock at Oakville Model Trains Depot.
