Description

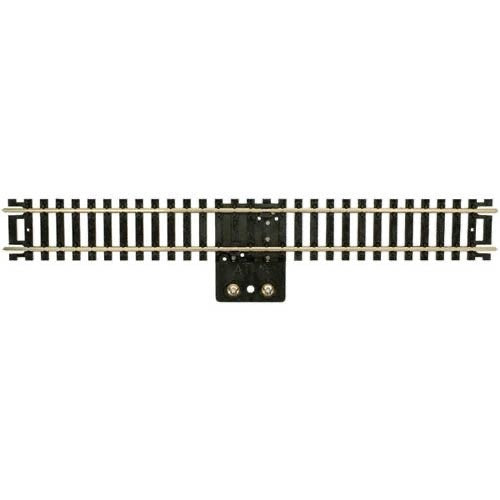

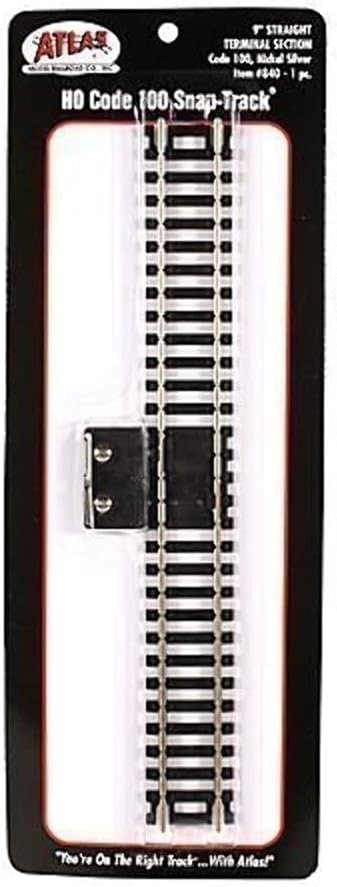

The Atlas 840 is a 9′′ (228 mm) Code 100 straight Snap-Track section with factory-wired feeder leads — the standard track-power entry point on any Atlas Snap-Track layout. Two pre-soldered wires drop through the roadbed to the power pack or DCC bus.
How it works: The two feeder wires connect to the screw terminals of an Atlas 313 Selector or an MRC/Bachmann/NCE/Digitrax controller. One #840 powers a complete continuous loop; for larger layouts add additional feeders every 6 ft / 2 m to prevent voltage drop.
- Scale: HO
- Code: 100
- Length: 9′′ / 228 mm
- Feeders: Pre-soldered, ~6′′ lead
- Compatible: DC and DCC
- Pairs with: Atlas 845 curved terminal, 313 Selector
- SKU: 150-840
