Description

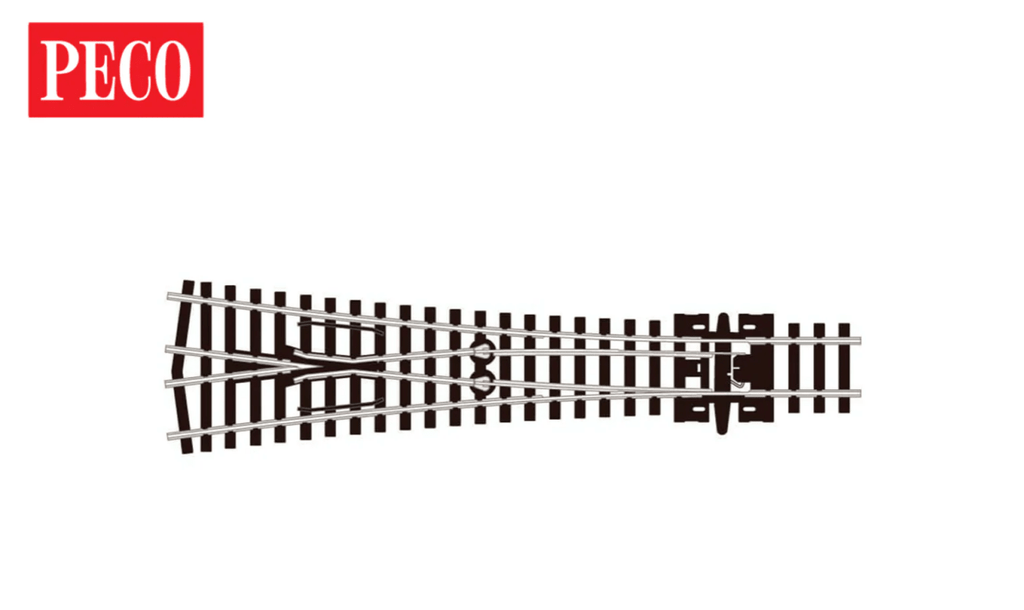

A PECO N (1:160) Code 80 Streamline medium-radius Y / Wye turnout with InsulFrog. Medium radius — the standard N Code 80 turnout, fits most ladder and crossover plans.
InsulFrog: the frog itself is insulating plastic — there's a small dead-spot through it, but you don't need any extra wiring for DCC. Plug it in and run.
Specifications
- Scale: N (1:160)
- Gauge: 9 mm
- Rail code: Code 80
- Type: Medium-radius y / wye turnout
- Frog: InsulFrog
- Radius geometry: Medium-radius
- Range: PECO Streamline
- SKU: SL-397
Wiring
- No extra wiring required — works on DC and DCC out of the box.
- Power feed at the toe end is fine; the closure rails are powered through the point blades.
Compatible motors
- PL-10 below-baseboard solenoid motor (requires a 40 × 24 mm cut-out).
- PL-11 side-mounted solenoid motor — clips on without drilling, ideal for OO/HO Setrack layouts.
- PL-1000 series Twistlock motor for an even simpler retrofit.
- For DCC turnout control, drive any of the above with an accessory decoder (NCE Switch-It, Digitrax DS64, etc.).
