Description

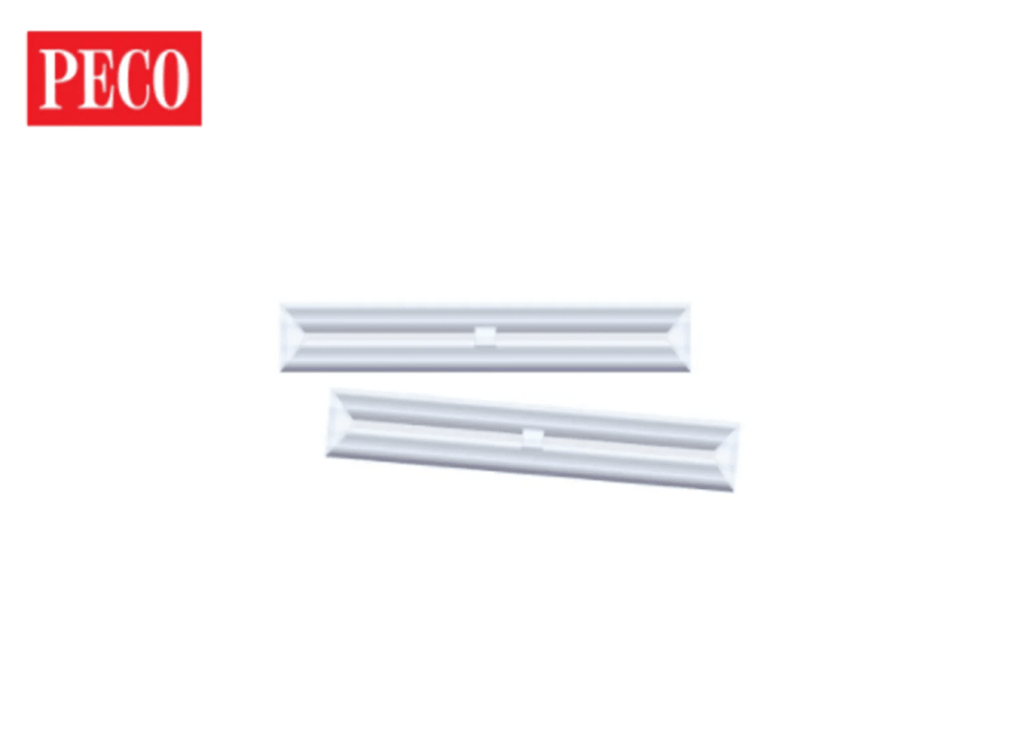

12 insulated nickel-silver rail joiners for PECO Code 75 rail. These are visually identical to standard joiners but contain a non-conductive plastic centre — they hold the track together mechanically while breaking the electrical connection. Essential for DCC reverse-loops, power-district boundaries, and isolating sidings on DC.
What you get
- 12 × insulated rail joiners
- Sized for Code 75 rail
Specifications
- Material: Nickel-silver with plastic insulator
- Fits: Code 75 rail (PECO + most other manufacturers)
- Quantity: 12
- SKU: SL-111
Common uses
- DCC reverse-loops: isolate both rails at the loop's entry and exit, feed via an auto-reverser.
- Power districts: separate sections so a short on one district doesn't trip the whole layout.
- DC dead-end sidings: isolate one rail at the far end of the siding so a parked loco can be cut off from power.
- Electrofrog turnouts: insulate both diverging-route rails just past the frog (PECO's published wiring practice).
