Description
The Digitrax EVOXD is the Evolution Express Advanced 5A/8A Duplex Radio Starter Set — a complete top-of-the-line DCC starter set built around the DCS210+ Advanced Command Station / Booster. Everything you need to run a club or large home layout straight out of the box: command station, booster, throttle, power supply, and cables.
Features: 5A / 8A output capacity (multi-scale, supports N + HO + large scale via voltage trim), supports up to 400 locomotives and throttles, prototypical consisting (MU multiple-unit operation), full CV programming on main and on a separate programming track, intelligent short-circuit protection, on-board USB for computer interface and SoundFX sound decoder programming, LocoNet expandability for boosters and occupancy detection.
About Duplex Radio: Duplex radio is Digitrax's bidirectional wireless system — your handheld throttle sends commands AND receives status back from the command station. More than double the range of older UR92 IR systems, and the EVOXD can be mixed with UR92 LocoNet Duplex Radio for extended coverage. No more line-of-sight infrared throttles.

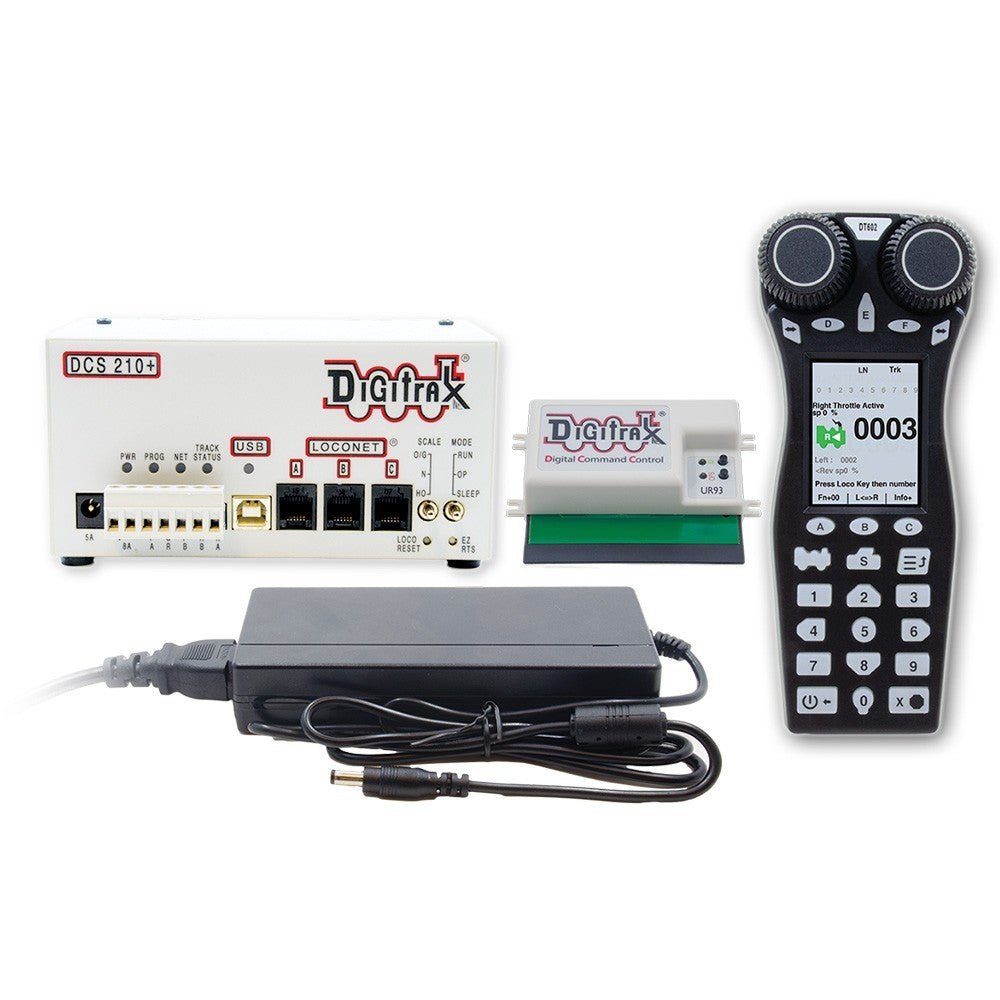

What's in the box: Command station + DT602 throttle (handheld), PS615 power supply, throttle cable, LocoNet cable, programming track, full Quickstart Guide and reference manual.
About LocoNet: LocoNet is Digitrax's two-way control network that connects throttles, boosters, command stations, detection blocks, and signal modules across a layout — using standard 6-conductor RJ12 telephone cable. The two-way communication is what enables advanced features like transponding (knowing which loco is where), real-time slot status, and CV read-back from anywhere on the system.
About Digitrax: Digitrax is North America's leading manufacturer of DCC systems and has been the architect of the DCC standard since the 1990s. The proprietary LocoNet control bus is the most widely-supported throttle and accessory interface in club layouts worldwide, and Digitrax decoders / boosters / command stations are fully NMRA DCC compliant and interoperable with all NMRA-compliant DCC equipment.
- System: Digitrax Evolution Express Advanced
- Output: 5A continuous / 8A peak, multi-scale voltage adjustable
- Max addresses: 400 locomotives / 400 throttles
- Throttle: DT602 colour-screen handheld
- Wireless: Duplex Radio (bidirectional)
- SKU: EVOXD
In stock at Oakville Model Trains Depot.
